高精度直流電子負載

首頁 > 產品索引 > 基礎測量 > 電子負載 > PEL-8000 series

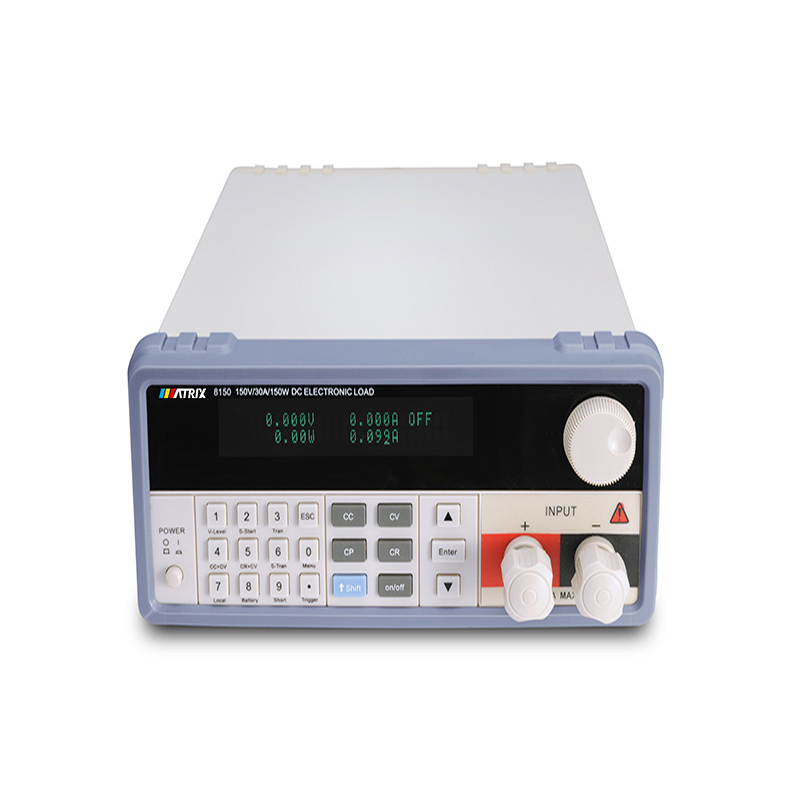

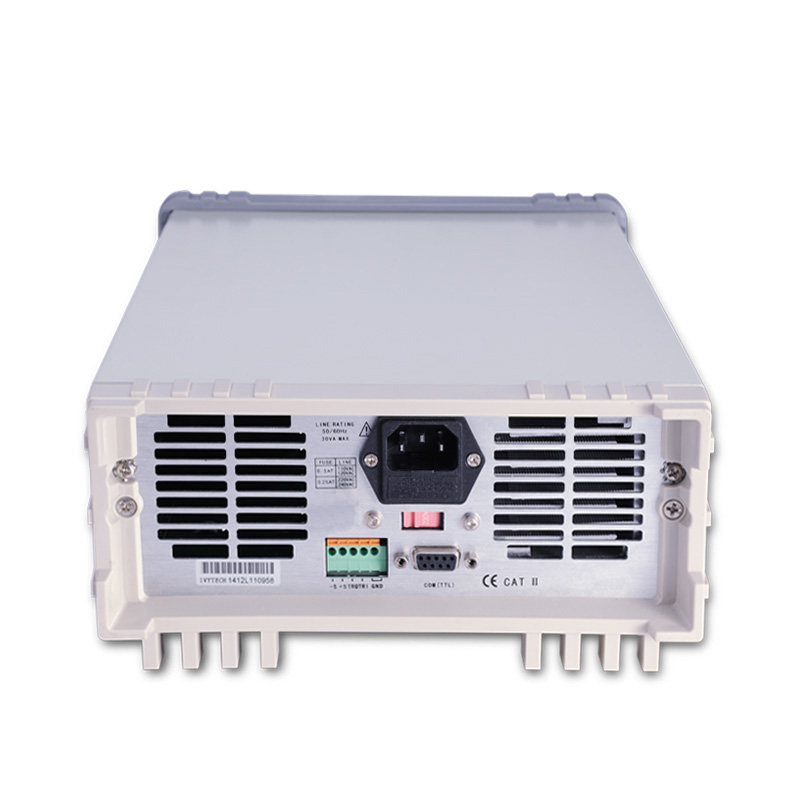

PEL-8000 series

立即詢價

加入詢價車

產品價格：$15,015元起~

☉ 產品特色

model		PEL-8150		PEL-8300
Rated input	power	150W		300W
	Electric current	0 ~ 30A		0 ~ 60A
	Voltage	150V
Constant current mode	range	0 ~ 3A	0 ~ 30A	0 ~ 6A	0 ~ 60A
	Resolution	0.1mA	1mA	0.1mA	1mA
	Accuracy	0.03% + 0.05%
Constant voltage mode	range	0.1 ~ 19.999V 0.1 ~ 150V
	Resolution	1mV	10mV	1mV	10mV
	Accuracy	0.03% + 0.05% FS
Constant resistance mode (when input voltage and current value ≥ 10% of full scale)	range	0.03Ω ~ 10k	0.03Ω ~ 5k	0.3Ω ~ 10k	0.3Ω ~ 5k
	Resolution	16bits
	Accuracy	0.2% + 0.2% FS		0.1% + 0.1% FS
Constant power mode (when input voltage and current value ≥ 10% of full scale)	range	0 ~ 150W		0 ~ 300W
	Resolution	1mV	10mV	1mV	10mV
	Accuracy	0.2% + 0.2% FS		0.1% + 0.1% FS
Voltage measurement	Voltage	0 ~ 19.999V	0 ~ 150V	0 ~ 19.999V	0 ~ 150V
	Resolution	1mV	10mV	0.1mV	1mV
	Accuracy	0.015% + 0.05% FS	0.015% + 0.05% FS	0.015% + 0.03% FS	0.015% + 0.02% FS
Current measurement	Electric current	0 ~ 3A	0 ~ 30A	0 ~ 6A	0 ~ 60A
	Resolution	0.1mA	1mA	0.1mA	1mA
	Accuracy	0.05% + 0.1% FS	0.05% + 0.1% FS	0.03% + 0.05% FS	0.03% + 0.08% FS
Power measurement value (when input voltage and current value ≥ 10% of full scale)	power	100W	150W	100W	300W
	Resolution	1mW	10mW	1mW	10mW
	Accuracy	0.2% + 0.2% FS		0.1% + 0.1% FS
Battery measurement: battery input: 0.5 ~ 150V maximum measurement: capacity = 999 / H; resolution = 0.1mA; actual = range = 1S ~ 16HS

Dynamic test function: 0 ~ 5kHz; T1 & T2: 60Us ~ 999S; Accuracy: ± 15% offset + 10% FS
Current soft start time: 1mS; 2mS; 5mS; 10mS; 20mS; 50mS; 100mS; 200mS; 500mS; 1000mS; 2000mS; Accuracy: ± 15% offset + 10% FS
Short circuit function	Current (CC)	3A	30A	6A	60A
	Voltage (CV)	0V
	Resistance (CR)		55mΩ		25mΩ
temperature	Operating temperature	0 ~ 40 ° C / 80RH
	storage temperature	-10 ° C ~ 70 ° C / 80RH
Bare metal size (W * H * D)	mm	215 * 100 * 355
Packing size (W * H * D)	mm	310 * 200 * 480
net weight	kg	4.1		4.9
Gross weight	kg	5		5.8

☉ 產品規格

特點
1. CC、CV、CR、CP、短路、動態等工作模式
2. 過壓、過流、過功率、過溫、反極性保護
3. 高亮度VFD螢幕，同時顯示V A P
