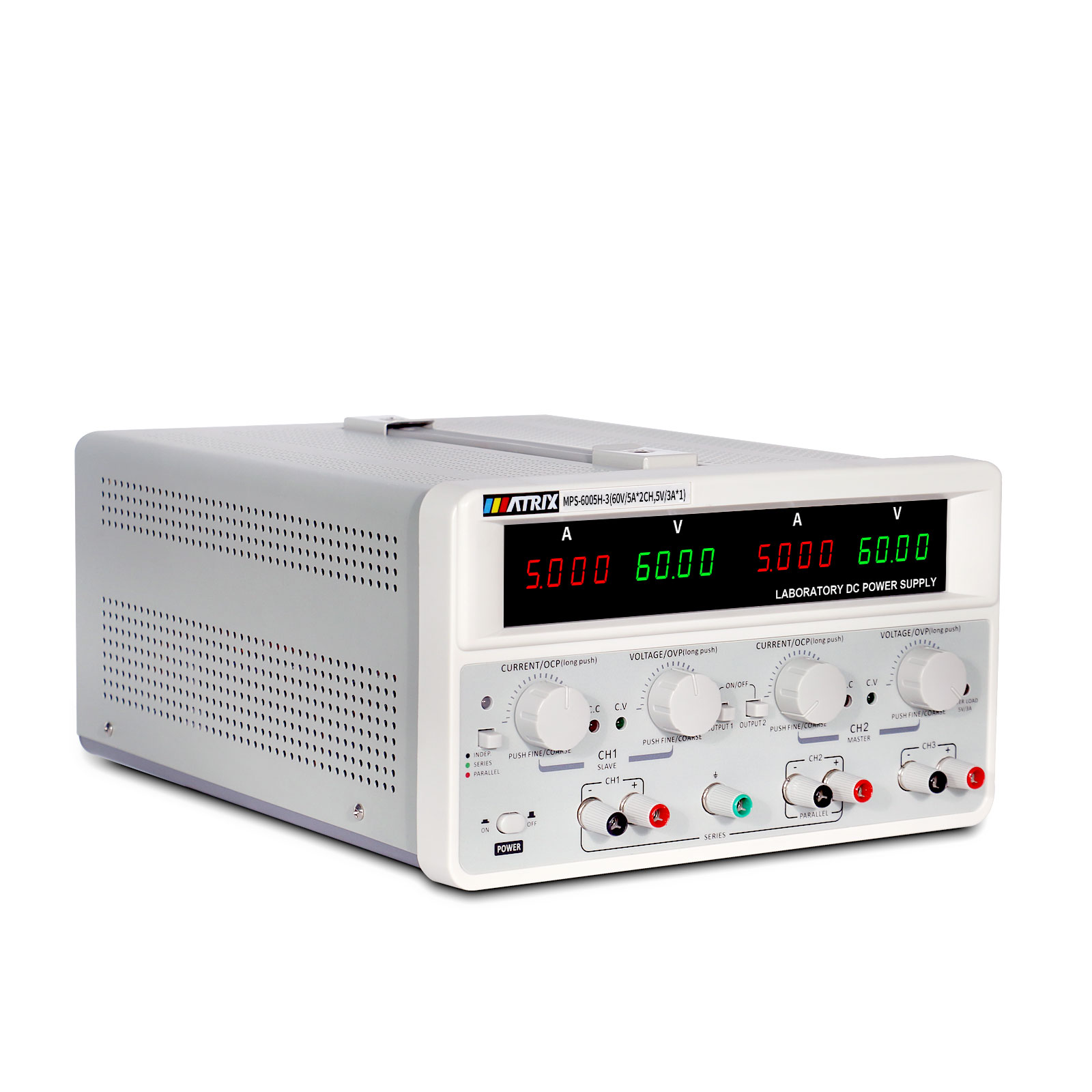

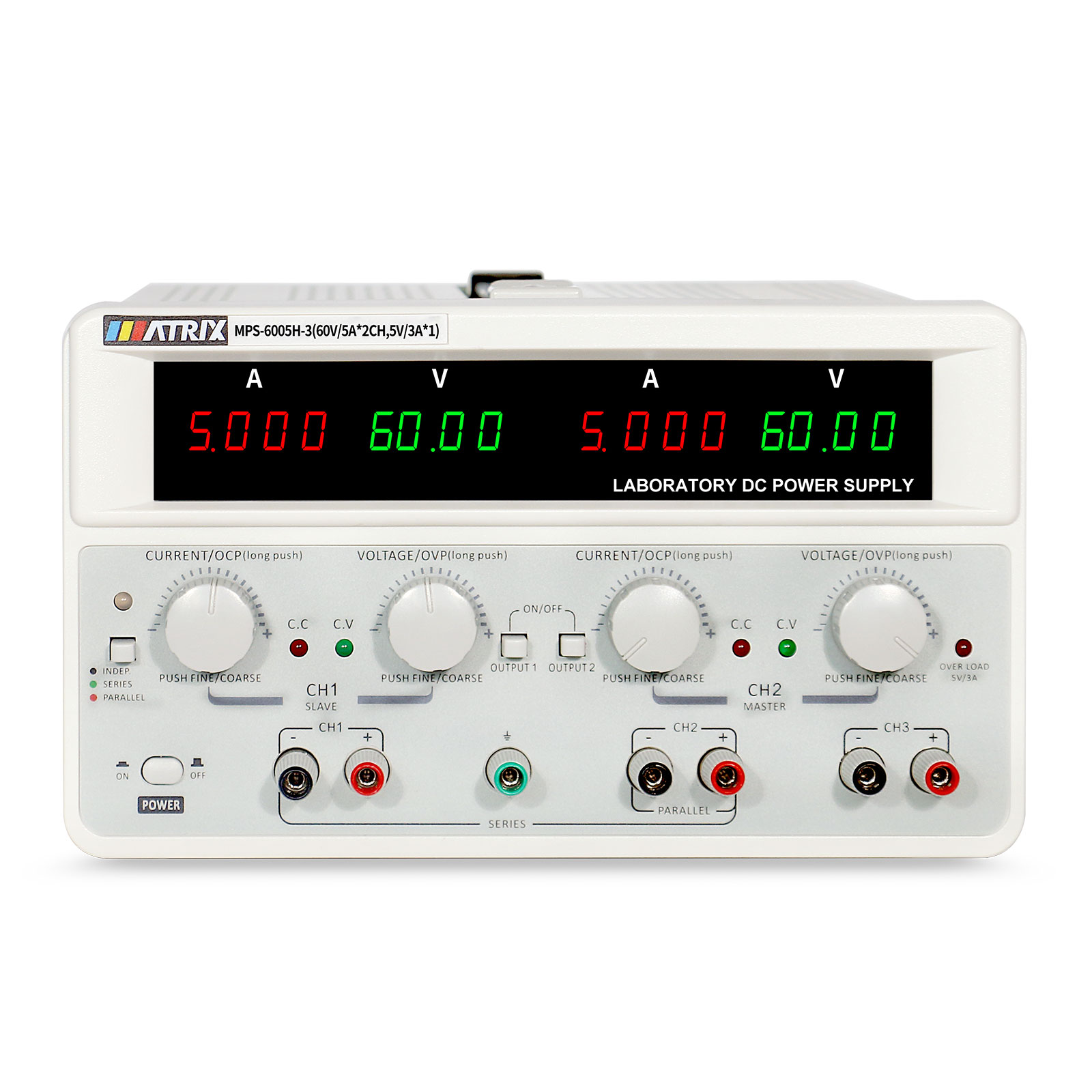

MPS-H series(標準型，無通訊界面)
立即詢價
加入詢價車
產品價格：$12,000元起~
☉ 產品特色
| Model | MPS-3003H-3 | MPS-3005H-3 | MPS-3010H-3 | MPS-6003H-3 | MPS-6005H-3 | |||||||||||
| Channel | CH1 | CH2 | CH3 | CH1 | CH2 | CH3 | CH1 | CH2 | CH3 | CH1 | CH2 | CH3 | CH1 | CH2 | CH3 | |
| Rated output | Voltage | 0~30V | 0~30V | 5V | 0~30V | 0~30V | 5V | 0~30V | 0~30V | 5V | 0~60V | 0~60V | 5V | 0~60V | 0~60V | 5V |
| Current | 0~3A | 0~3A | 3A | 0~5A | 0~5A | 3A | 0~10A | 0~10A | 3A | 0~3A | 0~3A | 3A | 0~5A | 0~5A | 3A | |
| Load regulation | Voltage | ≤0.01%+5mV | ≤15mV | ≤0.01%+5mV | ≤15mV | ≤0.01%+8mV | ≤15mV | ≤0.01%+5mV | ≤15mV | ≤0.01%+5mV | ≤15mV | |||||
| Current | ≤0.1%+5mA | -- | ≤0.1%+5mA | -- | ≤0.1%+5mA | -- | ≤0.1%+5mA | -- | ≤0.1%+5mA | -- | ||||||
| Power regulation | Voltage | ≤0.01%+5mV | -- | ≤0.01%+5mV | -- | ≤0.01%+8mV | -- | ≤0.01%+5mV | -- | ≤0.01%+5mV | -- | |||||
| Current | ≤0.1%+5mA | -- | ≤0.1%+5mA | -- | ≤0.1%+5mA | -- | ≤0.1%+5mA | -- | ≤0.1%+5mA | -- | ||||||
| Set resolution | Voltage | 10mV | -- | 10mV | -- | 10mV | -- | 10mV | -- | 10mV | -- | |||||
| Current | 1mA | -- | 1mA | -- | 1mA | -- | 1mA | -- | 1mA | -- | ||||||
| Readback resolution | Voltage | 10mV | -- | 10mV | -- | 10mV | -- | 10mV | -- | 10mV | -- | |||||
| Current | 1mA | -- | 1mA | -- | 1mA | -- | 1mA | -- | 1mA | -- | ||||||
| Set value accuracy | Voltage | ≤0.03%+10mV | -- | ≤0.03%+10mV | -- | ≤0.03%+10mV | -- | ≤0.03%+10mV | -- | ≤0.03%+10mV | -- | |||||
| Current | ≤0.1%+5mA | -- | ≤0.1%+5mA | -- | ≤0.1%+5mA | -- | ≤0.1%+5mA | -- | ≤0.1%+5mA | -- | ||||||
| Readback accuracy | Voltage | ≤0.03%+10mV | -- | ≤0.03%+10mV | -- | ≤0.03%+10mV | -- | ≤0.03%+10mV | -- | ≤0.03%+10mV | -- | |||||
| Current | ≤0.1%+5mA | -- | ≤0.1%+5mA | -- | ≤0.1%+5mA | -- | ≤0.1%+5mA | -- | ≤0.1%+5mA | -- | ||||||
| Parallel mode | Power effect | ≤0.01%+5mV | -- | ≤0.01%+5mV | -- | ≤0.02%+8mV | -- | ≤0.02%+5mV | -- | ≤0.01%+5mV | -- | |||||
| Load effect | ≤0.01%+5mV | -- | ≤0.02%+5mV | -- | ≤0.02%+8mV | -- | ≤0.02%+5mV | -- | ≤0.02%+5mV | -- | ||||||
| Serial mode | Power effect | ≤0.01%+5mV | -- | ≤0.01%+5mV | -- | ≤0.01%+8mV | -- | ≤0.01%+5mV | -- | ≤0.01%+5mV | -- | |||||
| Load effect | ≤0.01%+5mV | -- | ≤0.02%+5mV | -- | ≤0.01%+8mV | -- | ≤0.01%+5mV | -- | ≤0.02%+5mV | -- | ||||||
| Ripple and noise | Voltage | ≤2mV(rms) | ||||||||||||||
| Current | ≤5mA(rms) | |||||||||||||||
| Working temperature | 0~40°C ≤80%RH | |||||||||||||||
| Size | mm | 250*150*330 | ||||||||||||||
| Weight | kg | 8 | 9 | 12 | 9 | 9 | ||||||||||
☉ 產品規格
