麥創直流電源供應器

首頁 > 產品索引 > 基礎測量 > 電源供應器 > MPS-3000X series

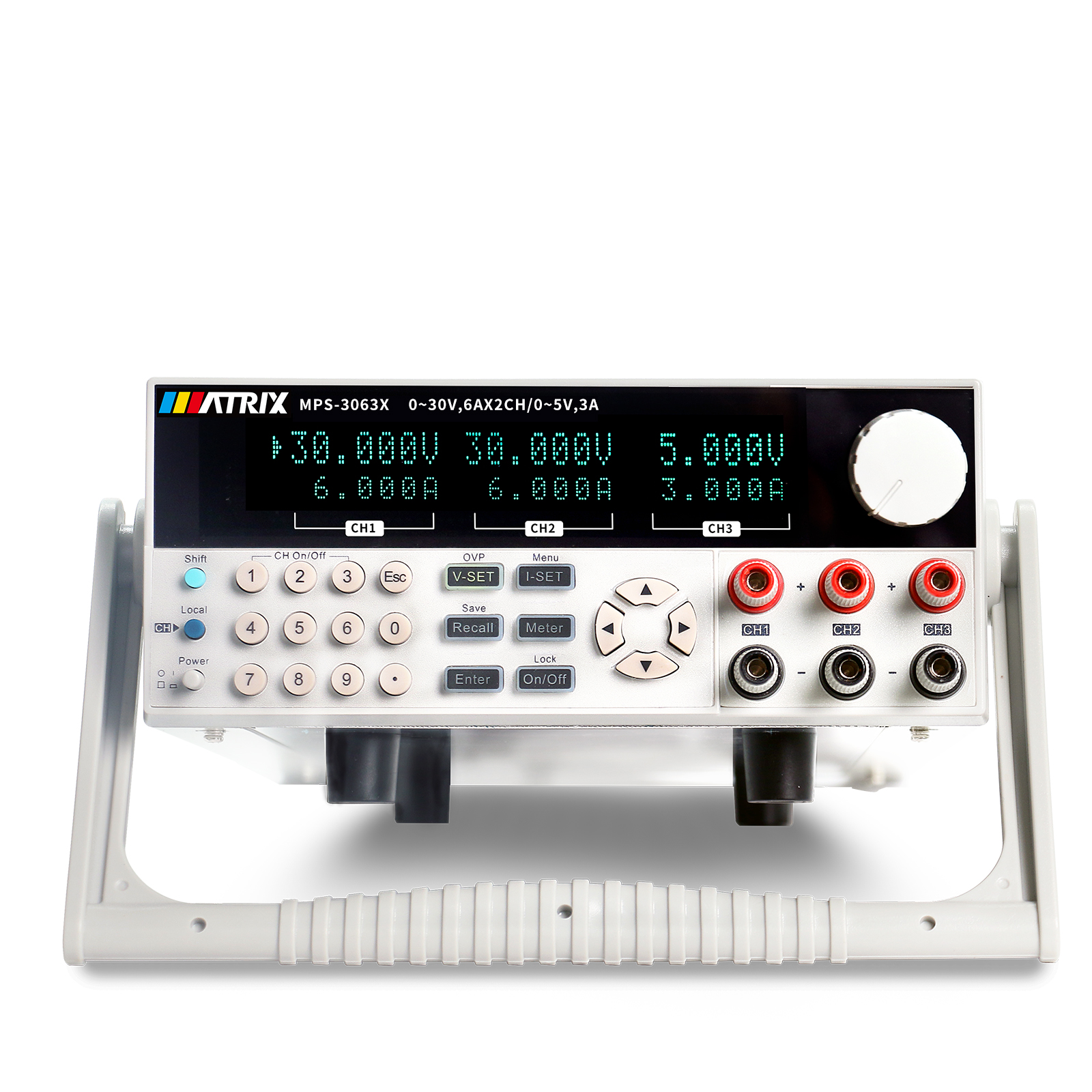

MPS-3000X series

立即詢價

加入詢價車

產品價格：$17,015元起~

☉ 產品特色

model		MPS-3033X	MPS-3063X	MPS-6033X
Rated output	Voltage	0 ~ 31V * 2/0 ~ 6V * 1	0 ~ 31V * 2/0 ~ 6V * 1	0 ~ 61V * 2/0 ~ 6V * 1
	Electric current	0 ~ 3A * 3	0 ~ 6A * 2/0 ~ 3A * 1	0 ~ 3A * 3
Load regulation	Voltage	≤0.01% + 3mV
	Electric current	≤0.01% + 3mA
Power regulation	Voltage	≤0.01% + 3mV
	Electric current	≤0.01% + 3mA
Set resolution	Voltage	1mV
	Electric current	1mA
Readback resolution	Voltage	1mV
	Electric current	1mA
Set accuracy	Voltage	≤0.03% + 10mV
	Electric current	≤0.1% + 5mA	≤0.1% + 8mA	≤0.1% + 5mA
Readback accuracy	Voltage	≤0.03% + 10mV
	Electric current	≤0.1% + 5mA	≤0.1% + 8mA	≤0.1% + 5mA
Ripple and noise	Voltage rms	≤2mVrms
	Electric current	≤5mArms
Series and parallel setpoint accuracy	Voltage	≤0.02% + 5mV	≤0.02% + 10mV	≤0.02% + 5mV
	Electric current	≤0.1% + 30mA
memory	Store / Call	40 groups
	Features	Timing off output
Timer	time setting	0.1s ~ 99999.9s
	Resolution	0.1s
Operating temperature		0 ~ 40 ° C
Bare metal size	mm	255 * 110 * 380	255 * 110 * 380	255 * 110 * 380
Packing size	mm	325 * 210 * 475	325 * 210 * 475	325 * 210 * 475
net weight	kg	8.5	8.5	8.5
Gross weight	kg	10	10	10

☉ 產品規格

特點
1. 三通道同時顯示電壓和電流，並可調節
2. 智能溫控風扇，降低噪音
3. 串並聯或同步模式選擇
4. 低鏈波和雜訊
5. 可通過電腦進行軟件監控和修正
6. 遠程測量功能 (SENSE) 可補償線路上的電壓降
7. 定時輸出時間（0～99999.9秒）
8. 輸出有開關控制
9. 可保存40組設置數據供快速調用
