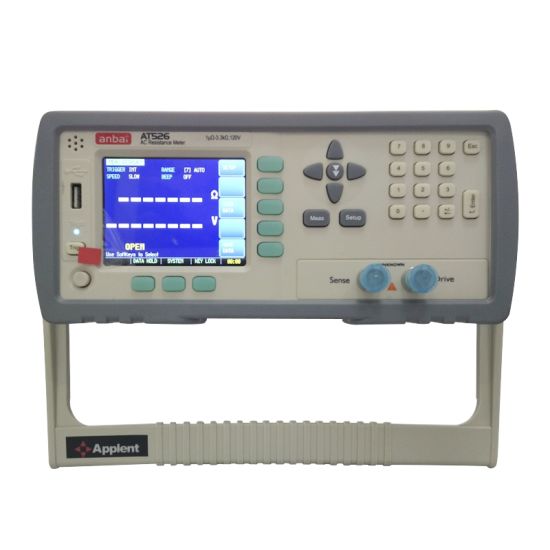

【旺群】Applent AT526 交流低電阻測試儀
立即詢價
加入詢價車
產品價格：$洽詢業務
☉ 產品特色
☉ 產品規格
| Specifications | |||
| AT526 Battery Internal Resistance Meter | AT526B Battery Internal Resistance Meter | ||
| Parameters | AC resistance, DC voltage | ||
| Accuracy | Resistance: 0.2% Voltage: 0.01% | Resistance: 0.5% Voltage: 0.1% | |
| Range | Resistance: 0.001mW - 33.000kW; Voltage: 0.00001V - 120.0000V DC |
Resistance: 0.001mW - 33.00W. Voltage: 0.0001V-60.000VDC |
|
| Signal Source | AC 1kHz, open-circuit voltage < 20mV, measurement current: < 150mA | ||
| Range | Automatic and manual with 6 ranges | Automatic and manual with 4 ranges | |
| Speed | 145 t/s, 30 t/s, 10 t/s, 1 t/s | 30 t/s, 10 t/s, 1 t/s | |
| Result Display | Show, DABS, D%, q, sorting results | ||
| Display Max | Resistance: 33,000, Voltage: 1,200,000 | Resistance: 33,00, Voltage: 60,00 | |
| Adjustment | Short-circuit reset for all range | ||
| Comparator | NG-LO, GD-IN, NG-HI display and output. beep is adjustable | ||
| Trigger | Internal, manual, and remote | ||
| Interface | RS232C, Handler interface (PLC) | Optional RS232C, Handler interface (PLC) | |
| Others | Detection of damage test wire, true-color TFT-LCD display, keypad lock and data hold function, internal memory and U-disk record |
||
| GENERAL FEATURES | |||
| Power Supply | Voltage: 85V AC - 240V AC Frequency: 50Hz Power: Max 15VA | ||
| Size | 264mm (Width)x107mm (Height)x350mm (Depth) 4kg | ||
| ORDERING INFORMATION | |||
| Accessories | ATL505 Kelvin test wire ATL108 RS232 interface cable | ||
| Options | ATL506A: test probe ATL506: test leads | ||
