【OWON】XDG系列兩通道任意波形信號產生器(250MHz)

首頁 > 產品索引 > 基礎測量 > 函數/任意波信號產生器 > 【OWON】XDG系列兩通道任意波形信號產生器(250MHz)

立即詢價

加入詢價車

產品價格：$洽詢業務

☉ 產品特色

We are known as one of world's leading China manufacturers and suppliers. Welcome to buy the famous brands' OWON 2-CH 250MHz Arbitrary Waveform Generator, dual channel waveform generator, frequency generator, power amplifier generator, arbitrary waveform generator, usb waveform generator, generator modulation function with cheap price from us. We have many products in stock at your choice. Consult the quotation with us now.

Specifications

Model		XDG3252	XDG3202	XDS3162	XDS3102	XDS3082
Channel		2
Frequency Output		250MHz	200MHz	160MHz	100MHz	80MHz
Sample Rate		1.25GSa/s
Vertical Resolution		14 bits
Waveform
Standard Waveform		sine, square, pulse, ramp, noise, and harmonic
Arbitrary Waveform		exponential rise, exponential fall, sin(x)/x, step wave, and others, total 150 built-in waveforms, and user-defined arbitrary waveform
Frequency (resolution 1μHz)
Sine		1μHz - 250MHz	1μHz - 200MHz	1μHz - 160MHz	1μHz - 100MHz	1μHz - 80MHz
Square		1μHz - 50MHz			1μHz - 40MHz	1μHz - 30MHz
Pulse		1μHz - 25MHz
Ramp		1μHz - 5MHz
Harmonic		1μHz - 125MHz	1μHz - 100MHz	1μHz - 80MHz	1μHz - 50MHz	1μHz - 40MHz
Noise		120MHz (-3dB, typical)
Arbitrary Waveform		built-in waveform: 1uHz - 15MHz user-defined waveform: 1uHz - 50MHz
Accuracy		±1ppm, 0°C - 40°C
Amplitude
into 50Ω load		1mVpp - 10Vpp (≤40MHz); 1mVpp - 5Vpp (≤80MHz) 1mVpp - 2.5Vpp (≤120MHz); 1mVpp - 1Vpp (≤250MHz)
into open circuit or high-Z		2mVpp - 20Vpp (≤40MHz); 2mVpp - 10Vpp (≤80MHz); 2mVpp - 5Vpp (≤120MHz); 2mVpp - 2Vpp (≤250MHz)
Resolution		1mV or 4 digits
DC Offset	Range (50Ω)	±(5 Vpk - Amplitude Vpp/2)
	Range (high-Z, open circuit)	±(10 Vpk - Amplitude Vpp/2)
	Accuracy	±(1% of \|setting\| + 1mV + Amplitude Vpp x 0.5%)
	Resolution	1mV or 4 digits
Load Impedance		50Ω (typical)
Accuracy		±(1% of setting + 1 mVpp) (typical, 1kHz sine, 0V offset)

Sine Wave Spectrum Purity
Harmonic Distortion Typical (0dB)		DC - 1MHz: <-65dBc 1MHz - 10MHz: <-60dBc 10MHz - 120MHz: <-50dBc 120MHz - 200MHz: <-45dBc
Total Harmonic Distortion		＜0.05 %, 10 Hz to 20 kHz, 1 Vpp
Spurious (non-harmonic), Typical (0dB)		≤10MHz: <-70dBc >10MHz: <-70dBc + 6dB/ octave
Phase Noise Typical (0 dBm, 10 kHz deviation)		10MHz: ≤-110dBc/Hz
Square
Rise/Fall Time		<5ns
Overshoot		<3%
Duty Cycle		50.0% (fixed)
Jitter (rms)		300ps + 100ppm
Pulse
Pulse Width		12ns - 996875s
Leading/Trailing Edge Time		≧7ns
Overshoot		<3%
Jitter (rms)		300ps + 100ppm
Ramp
Linearity		≤1% of peak output (typical, 1kHz, 1 Vpp, 50% symmetry)
Symmetry		0% to 100%
Harmonic
Harmonic Order		≤16
Harmonic Type		even, odd, all, user
Harmonic Amplitude		could be set for all the harmonics
Harmonic Phase		could be set for all the harmonics
Arbitrary
Waveform Length		2 points - 1M points
Vertical Resolution		14 bits
Minimum Rise/Fall Time		<7ns
Jitter (rms)		3ns

Modulation
Type		AM, FM, PM, PWM, FSK, 3FSK, 4FSK, PSK, OSK, ASK, BPSK, sweep, and burst
AM
Carrier Waveform		sine, square, ramp, and arbitrary (except DC)
Source		internal / external
Modulating Waveform		sine, square, ramp, noise, and arbitrary
Depth		0.0% - 100.0%
Modulating Frequency		2 mHz - 100 kHz
FM
Carrier Waveform		sine, square, ramp, and arbitrary (except DC)
Source		internal / external
Modulating Waveform		sine, square, ramp, noise, and arbitrary
Modulating Frequency		2 mHz - 100 kHz
PM
Carrier Waveform		sine, square, ramp, and arbitrary (except DC)
Source		internal / external
Modulating Waveform		sine, square, ramp, noise, and arbitrary
Phase Deviation		0° - 180°
Modulating Frequency		2 mHz - 100 kHz
PWM
Carrier Waveform		pulse
Source		internal / external
Modulating Waveform		sine, square, ramp, noise, and arbitrary
Width Deviation		0 ~ minimum (pulse duty ratio, 100% - pulse duty ratio)
Modulating Frequency		2 mHz - 100 kHz
FSK / 3FSK / 4FSK
Carrier Waveform		sine, square, ramp, and arbitrary (except DC)
Source		internal / external
Modulating Waveform		square with 50% duty cycle
Key Frequency		2 mHz - 1MHz
PSK
Carrier Waveform		sine, square, ramp, and arbitrary (except DC)
Source		internal / external
Modulating Waveform		square with 50% duty cycle
Key Frequency		2 mHz - 1MHz
OSK
Carrier Waveform		sine, square, ramp, and arbitrary (except DC)
Source		internal
Oscillation Time		square with 50% duty cycle
Key Frequency		2 mHz - 1MHz
ASK
Carrier Waveform		sine, square, ramp, and arbitrary (except DC)
Source		internal / external
Modulating Waveform		square with 50% duty cycle
Key Frequency		2 mHz - 1MHz
BPSK
Carrier Waveform		sine, square, ramp, and arbitrary (except DC)
Source		internal
Modulating Waveform		square with 50% duty cycle
Key Frequency		2 mHz - 1MHz
Sweep
Carrier Waveform		sine, square, ramp, and arbitrary (except DC)
Type		linear, and log
Direction		up, and down
Sweep Time		1 ms to 500s, ± 0.1%
Trigger Source		internal, external, and manual
Burst
Carrier Waveform		sine, square, ramp, pulse, and arbitrary (except DC)
Burst Count		1 to 50,000 period, infinite, gating
Internal Period		10 ns - 500 s
Gated Source		external trigger

Frequency Counter
Function		frequency period, +width, -width, +duty, and -duty
Frequency Range		100mHz - 200MHz
Frequency Resolution		7 digits

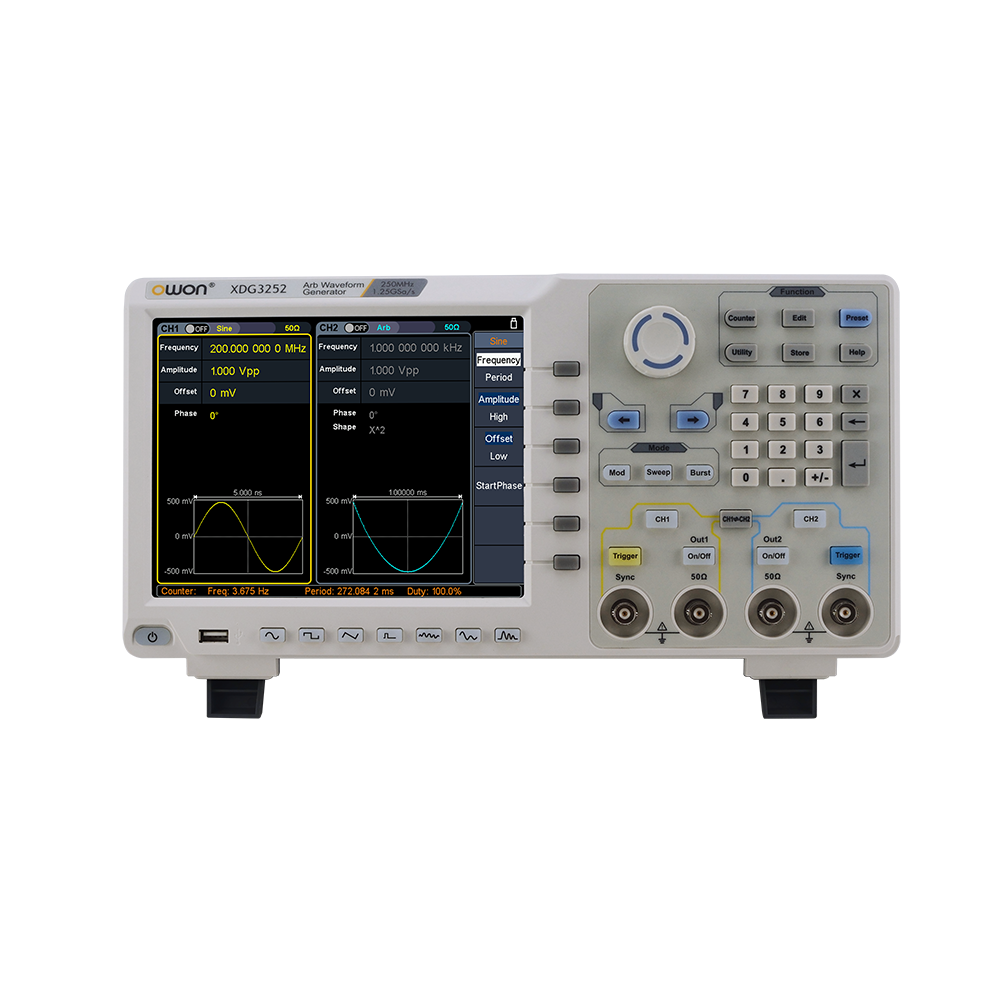

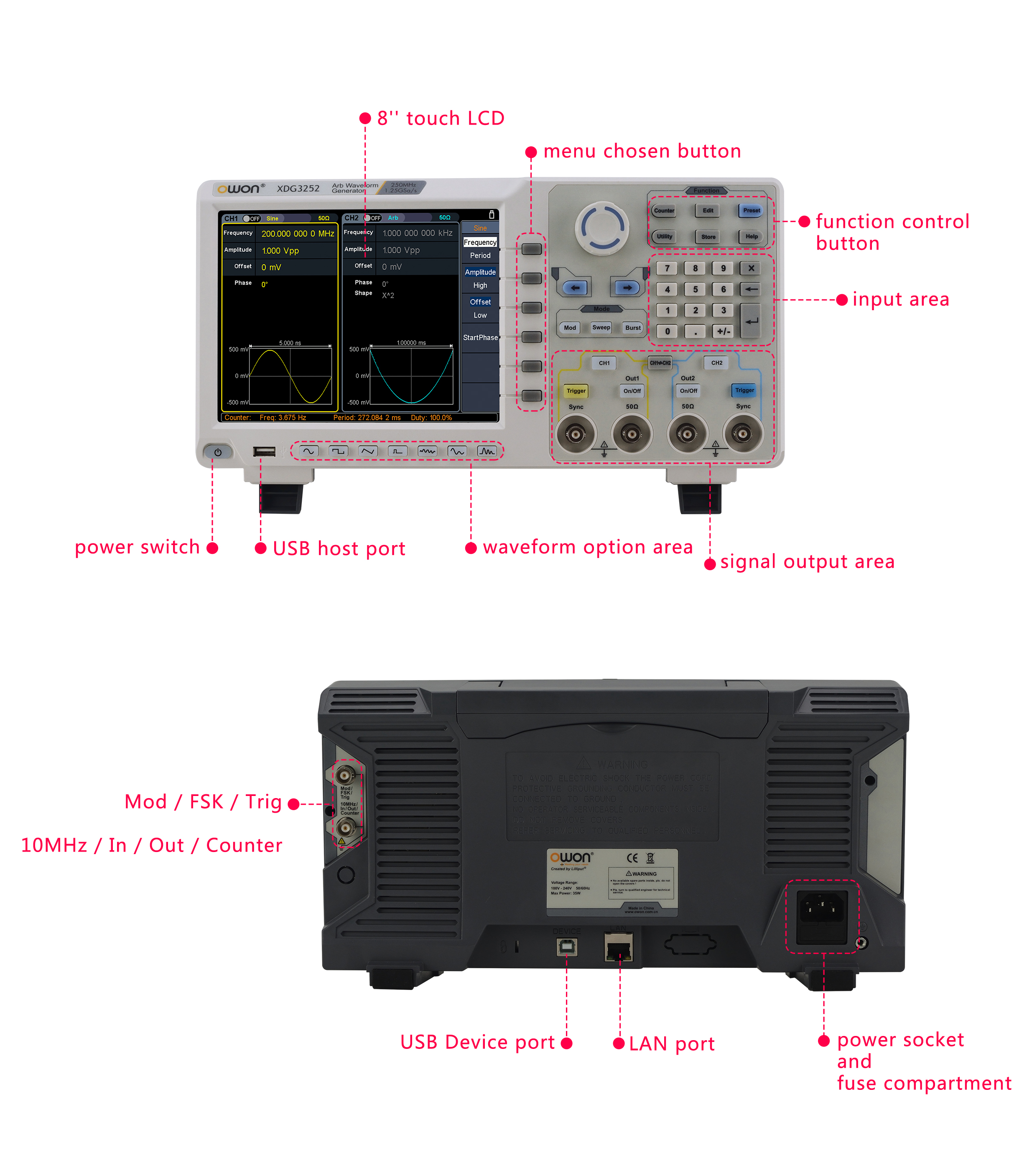

Input / Output
Display		8”800 x 600 pixels touch screen LCD
Type		frequency counter, external modulation input, external trigger input, external reference clock input / output
Communication Interface		USB Host, USB Device, and LAN
Dimension (W×H×D)		340 x 177 x 90 (mm)
Weight (without package)		2.50kg

☉ 產品規格

Advanced DDS technology, up to 250MHz frequency output
1.25GS/s sampling rate, and 1 μHz frequency resolution
Up to 1M arbitrary waveform length
Vertical resolution : 14 bits

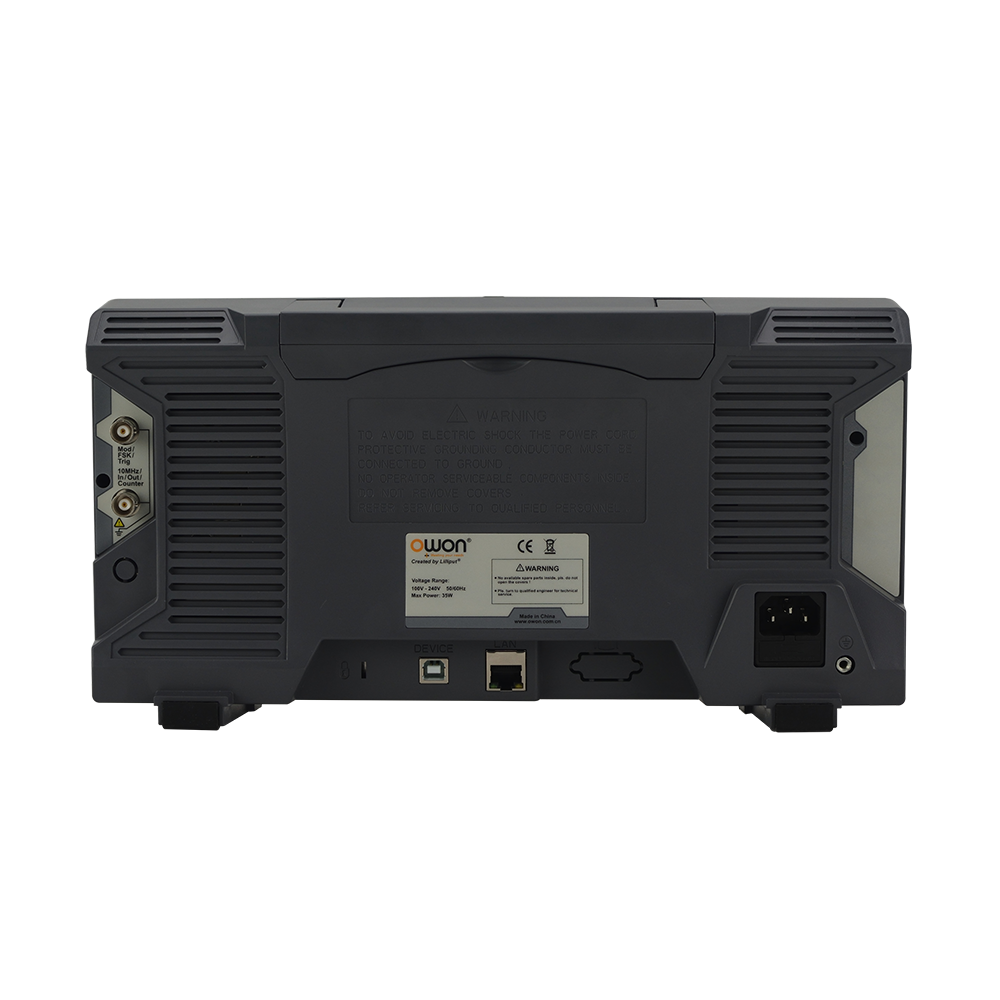

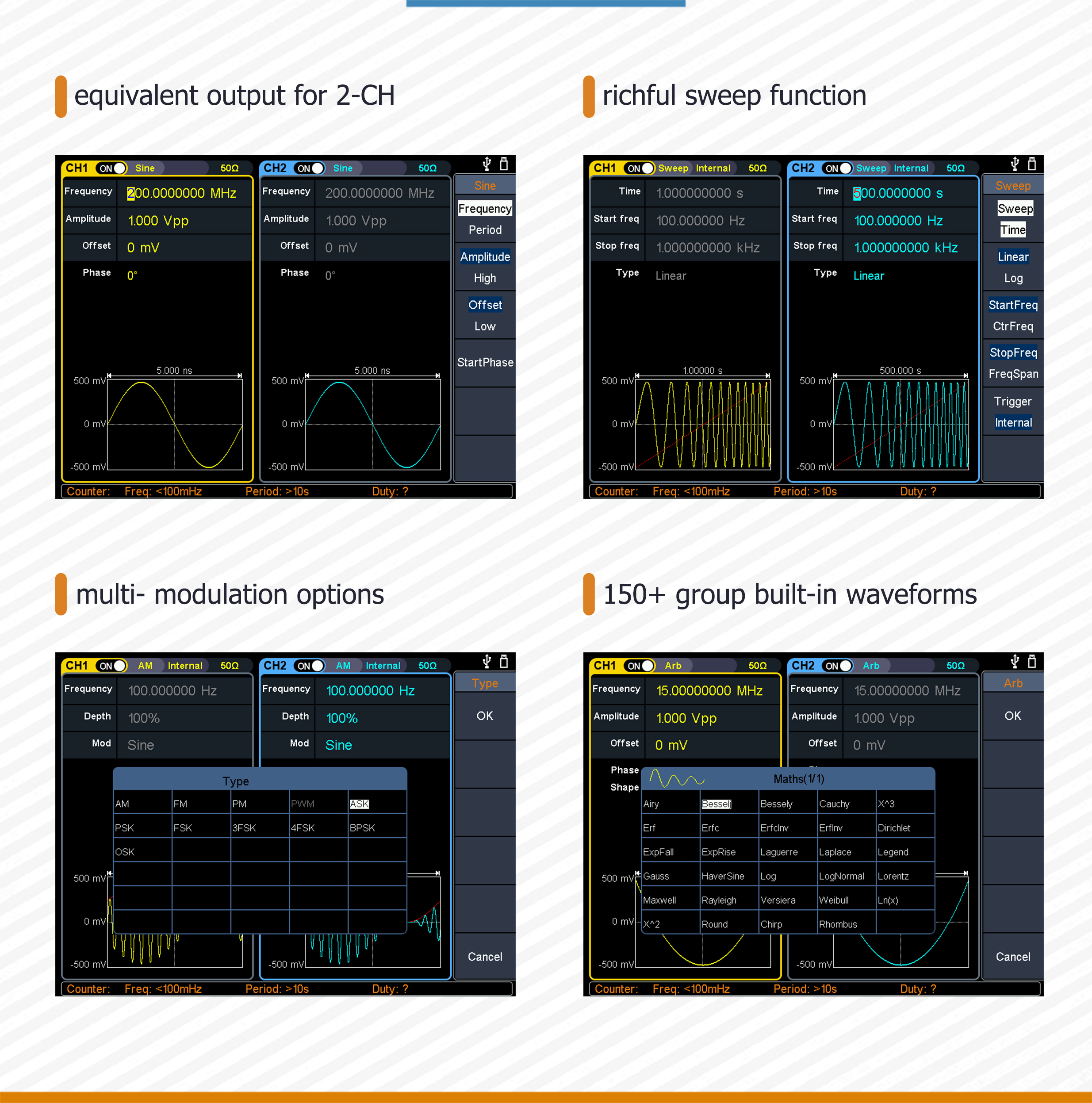

Comprehensive waveform output : 6 group basic waveforms, and 152 group built-in arbitrary waveforms
Comprehensive modulation options: AM, FM, PM, FSK, 3FSK, 4FSK, PSK, OSK, ASK, BPSK, PWM, sweep, and burst
High-accuracy frequency counter integrated, ranging from 100mHz till 200MHz
SCPI, and LabVIEW supported

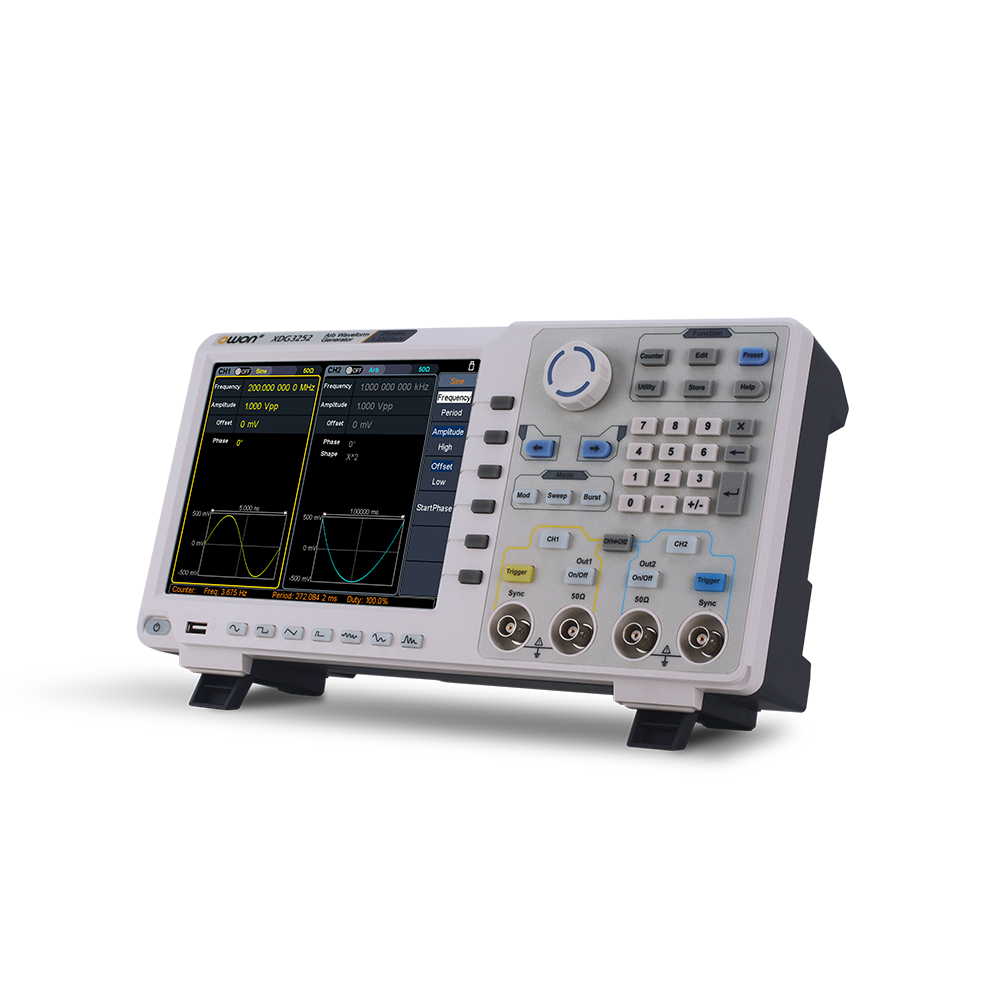

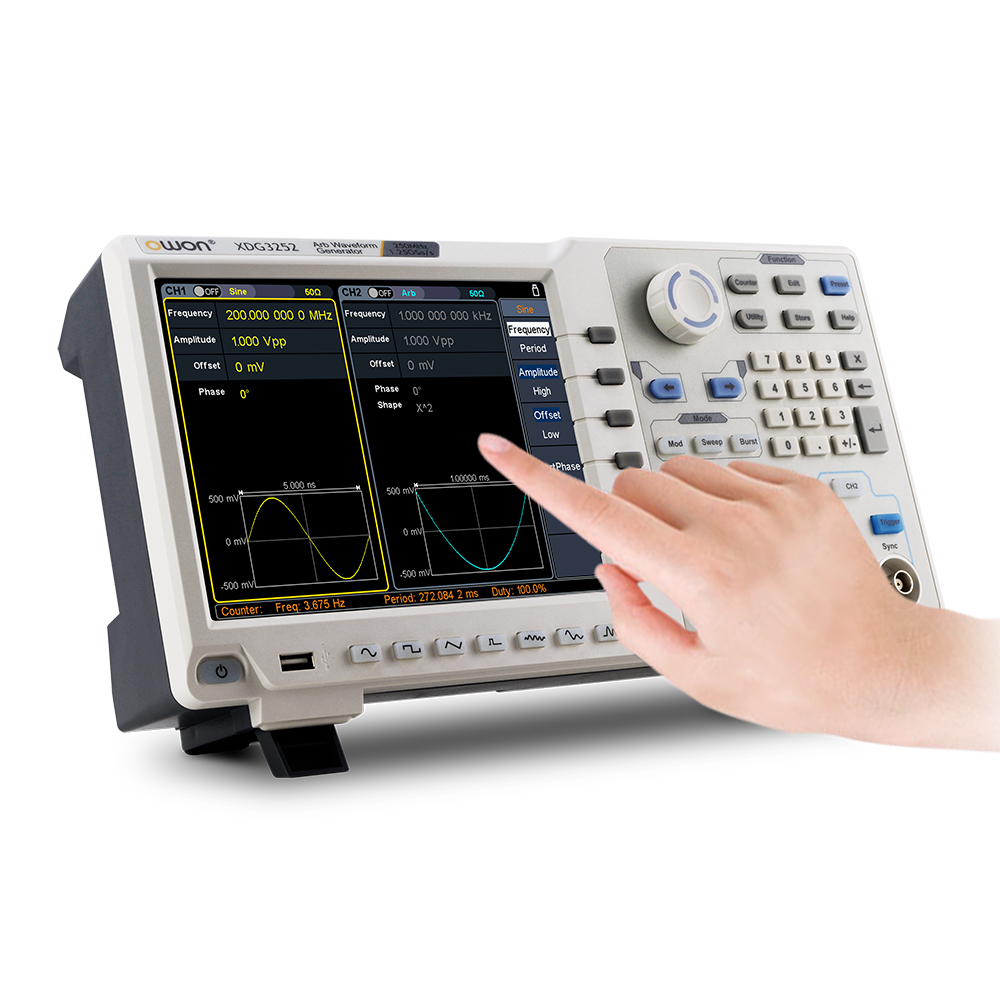

8'' 800 x 600 pixels touch screen LCD
