Features

• RF Frequency Range: 100 kHz to 12.4 GHz
• Wide dynamic range: -151 dBm to +10 dBm
• Resolution bandwidths (RBW) of 0.1 Hz to 250 KHz and 6 MHz

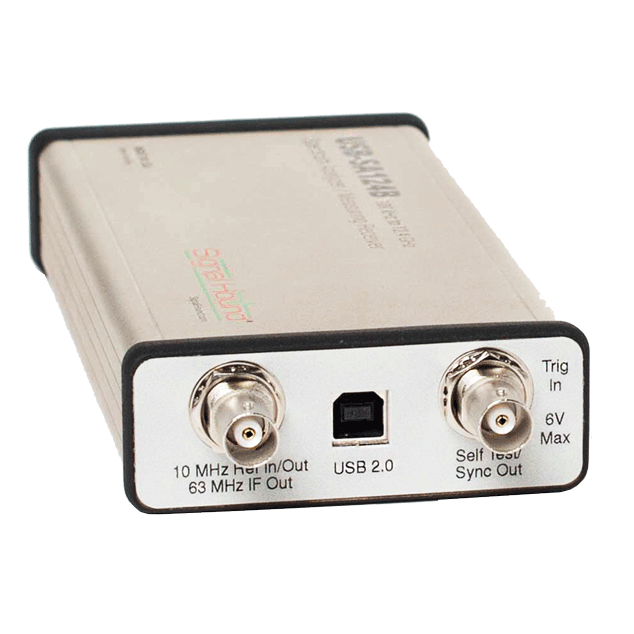

  • 6 MHz RBW available as an analog IF output centered at 63 MHz
    • Corresponds to U.S. analog / digital TV Channel 3
• Includes a High Dynamic Range Measuring Receiver
  • 0.25 dB relative accuracy
  • 0 dBm to -125 dBm, 100 kHz to 1 GHz
  • 0 dBm to -115 dBm, 1 GHz to 4 GHz
  • Adjustable digital audio filters
  • Accurate AM and FM measurements
• No external power supply needed – draws power from a dual USB cable
• Powerful Digital Signal Processing happens on the PC

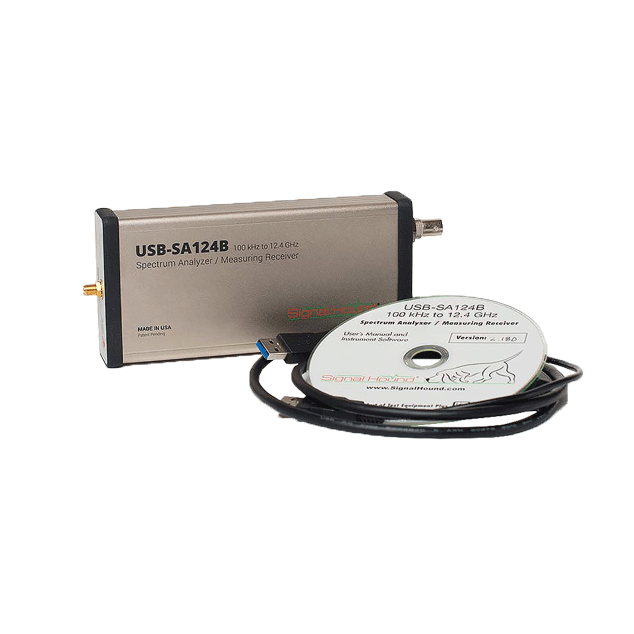

• Software and Hardware included for one low price
• Additional Third-Party Software Packages are available
  • TSCM software is available, and is being marketed
    as “Kestrel TSCM Software” through www.pdtg.ca
• Write your own software with our free Application Programming Interface (API)
  • I/Q Data up to a 240 KHz bandwidth
  • Frequency Sweeps up to 140 MHz per second
• Compatible with Windows 7/8/10 32-bit and 64-bit operating systems.
• AM and FM Demodulation Measurements
• USB 2.0 communications at 480 MBPS
• Demodulates AM/FM/SSB/CW audio in real-time
• Automation capability using our API
• Measures 8 inches long
• Weighs 12 ounces
